500/1250 800/1600 PVC Powder Mixer 200-300Kg/H PVC Mixing Machine

High Speed Hot Cold Mixer for Plastic PVC Powder Vertical Structure PVC Mixing Machine

SRLSeries powder mixer for plastic extruder units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.

Main Technical Parameter

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1250	SRL-Z800/1600
Total volume (L)	100/200	200/500	300/600	500/1250	800/1600
Effective capacity (L)	65/130	150/320	225/380	330/750	600/1050
Stirring speed (rpm)	650/1300/200	475/950/130	475/950/100	430/860/70	370/740/50
MIxing time (min.)	8-12	8-12	8-12	8-12	8-12
Motor power (kw)	14/22/7.5	30/42/11	40/55/11	55/75/15	83/110/22
Ovarall dimension (mm)	195016001800	458022402470	480026402480	5600&3000*3100	517032004480
Weight (kg)	2200	3400	3600	6500	9800
Output (kg/h)	165	330	495	825	1320

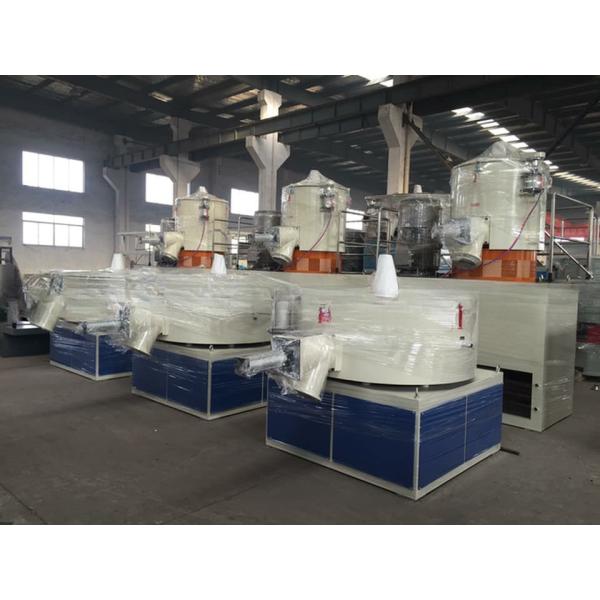

Plastic PVC Powder High Speed Hot Cold Mixer / PVC Mixing Machine
